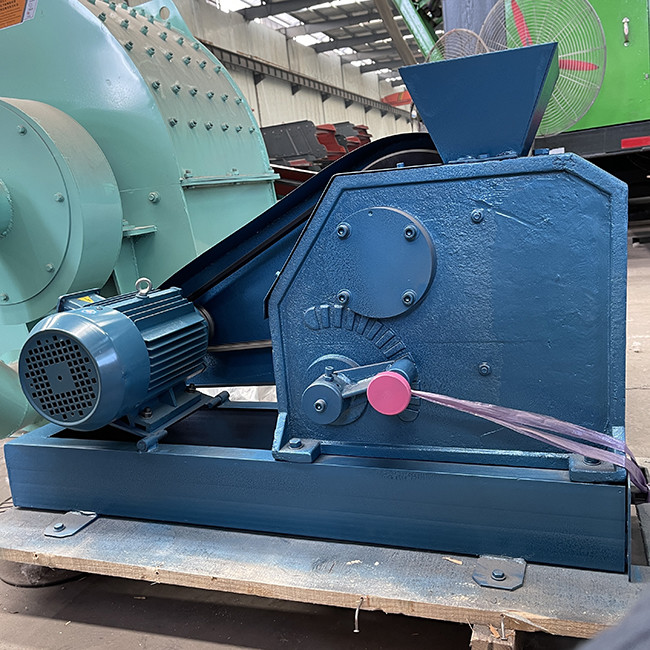

Mill Crusher Feed Particle Size 100*150 mm Laboratory Crusher

  • 1
  • 2

Brand Name : KELI

Model Number : KL-100x150

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15-35days

Packaging Details : Container

Type : Mill Crusher Laboratory Crusher

Discharge particle size : 5-25mm

Productivity : 480-1800kg/h

Dimensions : 700*380*480mm

Feed particle size : 80mm

Motor Power : 2.2kw

Brand : Keli

Application : Brick Making

Voltage : 220v 380v 415v

customization : OEM ODM

Contact Now

Mill Crusher Feed Particle Size 100*150 mm Laboratory Crusher

The main technical parameters

Model KL-100x150
Feed particle size (mm) 100*150
Maximum feed particle size (mm) 80
Discharge particle size (mm) 5-25
Motor Power (kw) 2.2
Rotating speed (r/min) 368
Productivity (kg/h) 480-1800
Voltage (v) 380
Dimensions (mm) 700*380*480
Machine weight (kg) 120

Scope of application
  • It is mainly suitable for medium crushing, coarse crushing, coal, limestone, slag and various medium-hard ores and rocks in construction, electric power, chemical industry, metallurgy, geological and other industries and industrial units.

Features
  • Fully sealed design, no dust pollution
  • Uniform output, no flakes
  • Simple structure, reliable operation and easy operation
  • Easy replacement of parts and easy maintenance
Details
  • Heightened and thickened base: The base is all made of thickened and heightened channel steel, which is heavier and more stable in operation.
  • Pig iron side plates: The side plates on both sides of the bearing are all made of pig iron, which has high strength and high temperature resistance, and can prevent high temperature lubricating oil from splashing out.
  • Branded bearings: The bearings adopt well-known brand products, which have better concentricity and are more durable.
  • Adjusting screw: solid iron adjusting screw, good feel, strong and durable.

Mill Crusher Feed Particle Size 100*150 mm Laboratory Crusher

Other Models
Model KL-100x60 KL-150x125 KL-100x125 KL-Disc
Feed particle size (mm) 50 125*150 100*125 175mm(diameter)
Maximum feed particle size (mm) 50 120 100 2-3
Discharge particle size (mm) 3-10 3-25 2-35 0.15-1
Motor Power (kw) 1.5 3 3 1.1
Rotating speed (r/min) 600 368 375 78
Productivity (kg/h) 45-550 500-3000 30-2000 25
Voltage (v) 380 380 380 380
Dimensions (mm) 700*380*480 1000*450*520 1000*550*580 690*465*400
Machine weight (kg) 120 280 250 95

Working principle

Empirical formula crusher is a kind of equipment that uses the interaction of moving knife and fixed knife to crush materials into particles through cutting, impact, extrusion and other ways. It consists of a feed inlet, a crushing chamber, and a graded aggregate box. The material enters the crushing chamber through the feeding port, and after being crushed by the high-speed rotating moving and fixed knives of the defendant, it is screened and selected before falling into the aggregate box to complete the crushing. Mainly used for crushing various medium hardness rocks or ores, it is an important equipment in laboratories and laboratories in industries such as metallurgy, geology, building materials, and chemical engineering.
